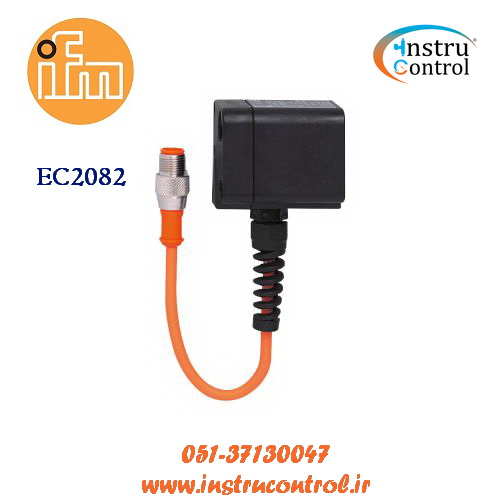

ترانسمیتر شیب و زاویه مدل EC2082

قیمت: از 3,075,000 تا 3,650,000 تومان
برند: ifm
مدل: EC2082



Operating voltage [V] 20...30 DC
Inputs / outputs
Number of inputs and outputs Number of analog outputs: 1



Outputs

Number of analog outputs 1
Analog current output [mA] 4...20



Measuring/setting range

Number of measurement axes 1
Angular range [°] ± 90



Accuracy / deviations

Accuracy [°] 0,1°



Tests / approvals

MTTF [years] 991



Mechanical data

Weight [g] 172.5
Dimensions [mm] 41 x 41 x 52
Tightening torque [Nm] 1.8



Remarks

Pack quantity 1 pcs.



Electrical connection

  Cable: 0.2 m
  Connector: 1 x M12
